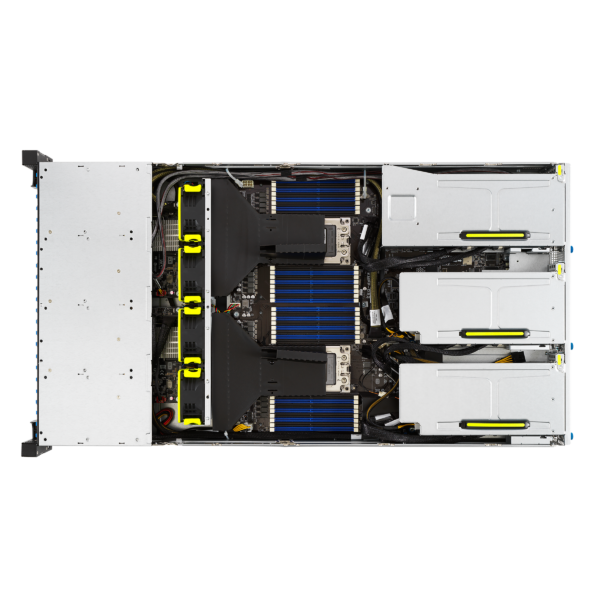

Asus RS720-E11-RS12U 2U 12 x 3.5″ Bays dual-socket server powered by 4th/5th Gen Intel Xeon Scalable Dual processors

Description

Processor / System Bus

Intel®Xeon® Processor Scalable Family
Generation

4th/5th
Core Logic

Intel® C741 Chipset
Memory

Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

* Refer to www.asus.com/support for more information
Expansion Slots

Up to 9 slots
6 x PCIe G5 x8 link or 3 x PCIe G5 x16 link (FHFL or FHHL)
1 x PCIe G5 x16 link (FHHL)
1 x OCP 3.0/PCIe Gen5 x16 link (FHHL)
1 x PCIe G5 x16, LP
Storage

12 x 3.5”/2.5″ hot-swap bay
8 x NVMe/SAS*/SATA + 4 NVMe/SATA
Optional 2 x 2.5″ Rear
Hot-swap Storage Bays (Up to 2x NVMe/SATA)
(*HBA/RAID card is required to support SAS hard drives)
Drive Bays

12 x 3.5”/2.5″ hot-swap bay
2 x M.2 slot
System Fan

4
Networking

4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port
Graphic

Aspeed AST2600 64MB
Front I/O Ports

2 x USB 3.2 Gen1 ports

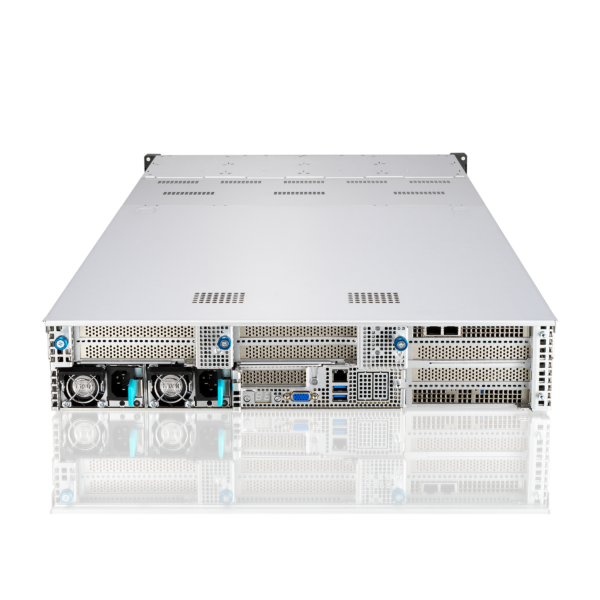

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED

Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions

840mm x 447mm x 88mm
Form Factor

2U
Weight

26.855kg
Power Supply

1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply
CPU Heatsink/ Cooler

Standard/ EVAC Heatsink

Additional information

Weight	50 lbs
Dimensions	30 × 18 × 5 in
Server Brand Name	Asus
Server Form Factor	2U Rackmount Server
Processor Supported	Intel Xeon Scalable 4th Gen Processors, Intel Xeon Scalable 5th Gen Processors
Drive bays Supported	12 x 3.5" Drive Bays
GPUs/Video Cards Supported	2, 4
Hard Drive Type Supported	M.2, SAS, SATA, U.2 NVMe SSD
PCIe Slot Counts	9 x PCIe Slot
