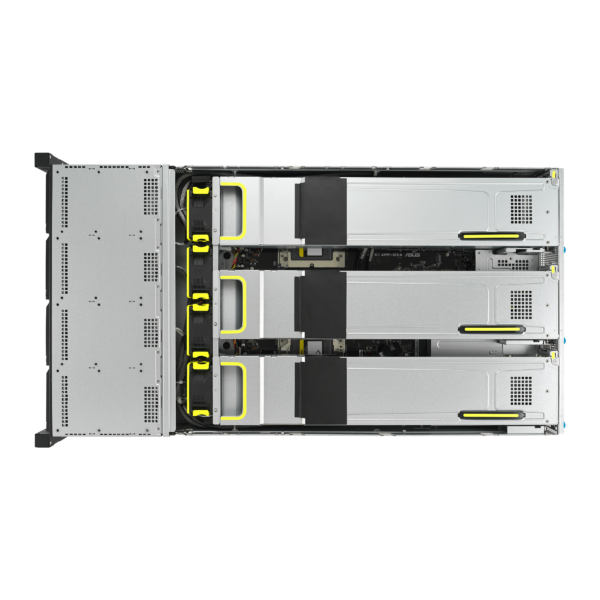

Asus RS720-E11-RS12U 2U 12 x 3.5″ Bays dual-socket server powered by 4th Gen Intel Xeon Scalable Dual processors GPU Version
$3,960.50
2U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 9 PCIe 5.0 slots, 14 NVMe, OCP 3.0, ASUS ASMB11-iKVM, and up to 4 dual-slot GPUs
- Description
- Additional information
Description
Processor / System Bus
Intel®Xeon® Processor Scalable Family
Generation
4th/5th
Core Logic
Intel® C741 Chipset
Memory
Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
* Refer to www.asus.com/support for more information
Expansion Slots
Up to 9 slots
6 x PCIe G5 x8 link or 3 x PCIe G5 x16 link (FHFL or FHHL)
1 x PCIe G5 x16 link (FHHL)
1 x OCP 3.0/PCIe Gen5 x16 link (FHHL)
1 x PCIe G5 x16, LP
Storage
12 x 3.5”/2.5″ hot-swap bay
8 x NVMe/SAS*/SATA + 4 NVMe/SATA
Optional 2 x 2.5″ Rear
Hot-swap Storage Bays (Up to 2x NVMe/SATA)
(*HBA/RAID card is required to support SAS hard drives)
Drive Bays
12 x 3.5”/2.5″ hot-swap bay
2 x M.2 slot
System Fan
4
Networking
4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port
Graphic
Aspeed AST2600 64MB
Front I/O Ports
2 x USB 3.2 Gen1 ports
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions
840mm x 447mm x 88mm
Form Factor
2U
Weight
26.855kg
Power Supply
1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply
CPU Heatsink/ Cooler
Standard/ EVAC Heatsink
Additional information
Weight | 50 lbs |
---|---|
Dimensions | 30 × 18 × 5 in |
Server Brand Name | Asus |
Server Form Factor | 2U Rackmount Server |
Processor Supported | Intel Xeon Scalable 4th Gen Processors, Intel Xeon Scalable 5th Gen Processors |
Drive bays Supported | 12 x 3.5" Drive Bays |
GPUs/Video Cards Supported | 2, 4 |
Hard Drive Type Supported | M.2, SAS, SATA, U.2 NVMe SSD |
PCIe Slot Counts | 9 x PCIe Slot |
