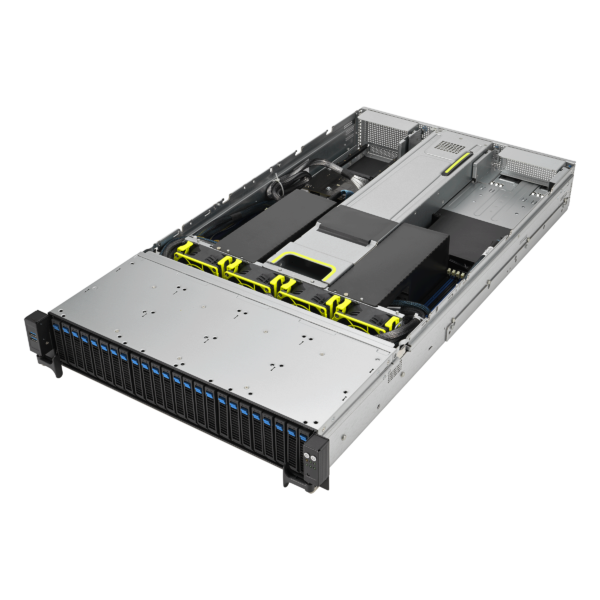

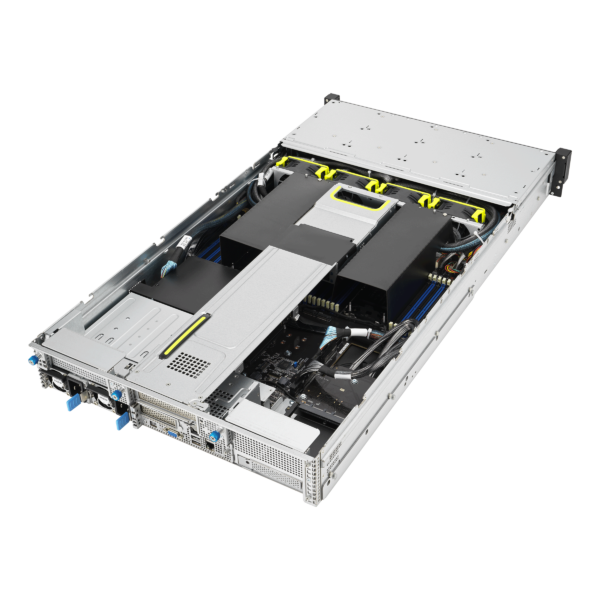

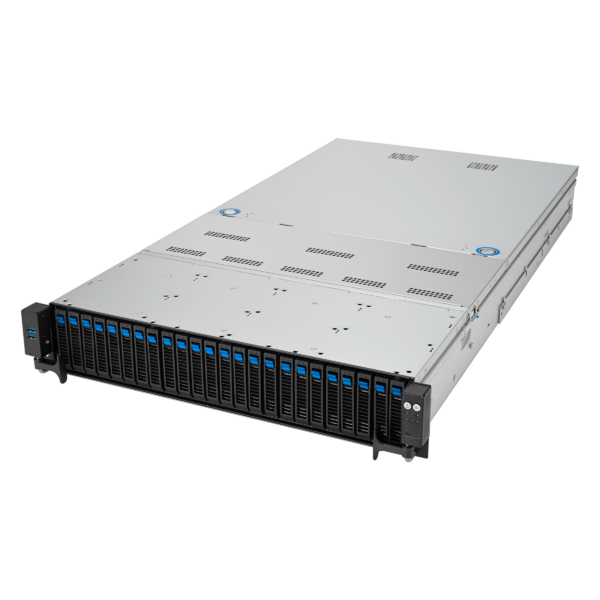

Asus RS720-E11-RS24U 2U 24 x 2.5″ Bays dual-socket server powered by 4th/5th Gen Intel Xeon Scalable Dual Processors
$3,460.50
2U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 24 NVMe, 1 dual-slot GPU, OCP 3.0, and ASUS ASMB11-iKVM
- Description
- Additional information
Description
-
Processor / System Bus
Intel®Xeon® Processor Scalable Family -
Generation
4th/5th -
Core Logic
Intel® C741 Chipset -
Memory
Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS* Refer to www.asus.com/support for more information
-
Expansion Slots
Up to 4 slots
2 x PCIe G5 x8 link or 1 x PCIe G5 x16 link (FHFL or FHHL)
1 x OCP 3.0
1 x PCIe G5 x16, LP -
Storage
24 x 2.5″ hot-swap bay
12x NVMe + 12x SATA/SAS* or 12x NVMe + 12x NVMe/SATA/SAS*
(*HBA/RAID card is required to support SAS hard drives) EDIT -
Drive Bays
24 x 2.5″ hot-swap bay
2 x M.2 slot -
System Fan
4 -
Networking
4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port -
Graphic
Aspeed AST2600 64MB -
Front I/O Ports
2 x USB 3.2 Gen1 ports -

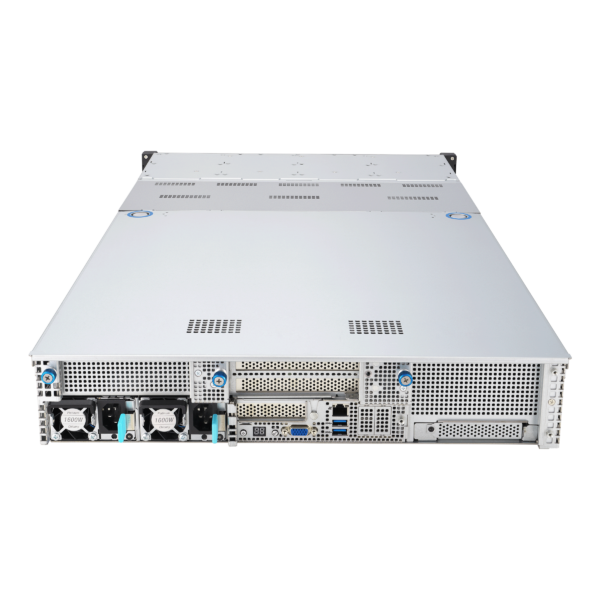

Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional) -
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED) -
Dimensions
840mm x 447mm x 88mm -
Form Factor
2U -
Weight
36 kg -
Power Supply
1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply -
CPU Heatsink/ Cooler
Standard
Additional information
Weight | 114 lbs |
---|---|
Dimensions | 30 × 18 × 5 in |
Server Brand Name | Asus |
Server Form Factor | 2U Rackmount Server |
Processor Supported | Intel Xeon Scalable 4th Gen Processors, Intel Xeon Scalable 5th Gen Processors |
Drive bays Supported | 24 x 2.5" Drive Bays |
GPUs/Video Cards Supported | 1 |
Hard Drive Type Supported | M.2, SAS, SATA, U.2 NVMe SSD |
PCIe Slot Counts | 9 x PCIe Slot |
