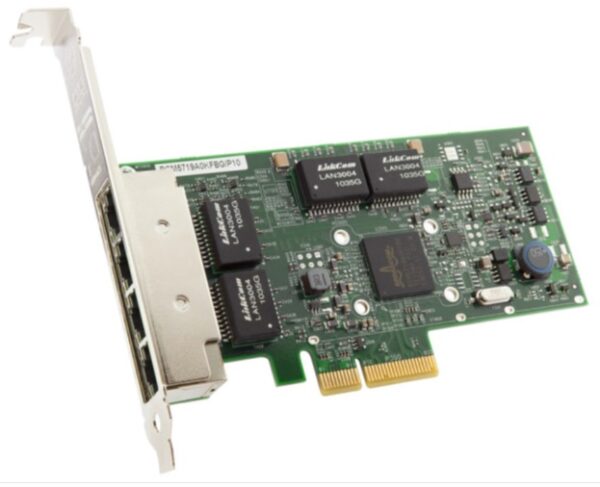

Broadcom 4 x 1GbE PCIe NIC BCM5719-4P PCIe NIC
$95.00
High-Performance, Feature-Rich Quad-Port 1G PCIe Ethernet NIC
- Description
- Additional information
Description
Designed for today’s enterprise and data center environments, Broadcom’s 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.
The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies.
The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
Additional information
Weight | 1 lbs |
---|---|
Dimensions | 1 × 1 × 1 in |
Add-on Card Type | Network Cards |
Server Brand Name | Broadcom |
