Asus RS500A-E12-RS12U 1U 16 Bays Single-socket server powered by AMD EPYC

Placeholder Gigabyte R183-Z92 AMD EPYC™ 9004 Server System – 1U DP 12-Bay NVMe/SATA/SAS AAD1
Tyan Thunder CX GC68-B7126 1U2S Cloud Server, 4 LFF + 4 NVMe U.2

$1,650.23

    • Powerful performance:Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
    • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, 4 NVMe in middle bay, and 3 PCIe 5.0 slots for higher bandwidth and system upgrade
    • Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
    • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
    • Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
    • Read for AI and HPC workloads:Up to two single-slot GPUs.
SKU: RS500A-E12-RS12U Category: Tag:
Add to wishlist

Description

      • Processor / System Bus

        1 x Socket SP5 (LGA 6096)

        AMD EPYC™ 9004 Series Processors (up to 400W)

      • Memory

        24 x DIMM slots

        DDR5 4800/4400 RDIMM/ 3DS RDIMM

        Maximum 6144GB*2DPC support depends on AMD schedule

        * Refer to support page for more information

      • Expansion Slots

        Up to 3 PCIe Gen5 slots + 1 OCP3.0

        1 x PCIe x16 slot (Gen5 x16 link, FH, HL)

        1 x PCIe x16 slot (Gen5 x16 link, LP, HL)

        1 x PCIe x16 slot (Gen5 x8 link, LP, HL)

        1 x OCP3.0 socket (Gen5 x16 link)

      • Storage

        Storage Controller :

        CPU Integrated

        Optional kits Controller :

        ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

      • Drive Bays

        Front bays:

        12 x 2.5” Hot-swap Storage Bays

        12 x SATA/SAS/NVME

        Optional 4 x 2.5” Internal Storage Bays

        4 x SATA/NVME

        *SAS support only from optional SAS

        HBA/RAID card2 x M.2 connectors

      • Networking

        1 x Dual Port Intel I350-AM2 GbE LAN Controller

        1 x Management Port

      • Graphic

        Up to 2 single-slot GPU cards

        *Internal Storage Bays SKU only support 1 single-slot GPU card

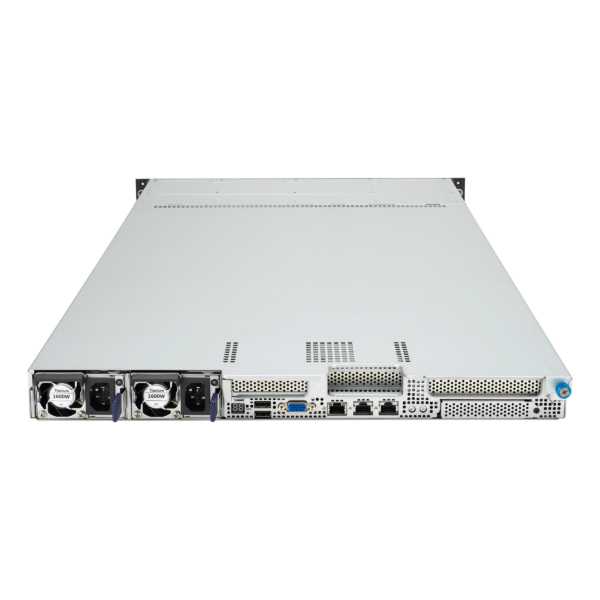

      • Rear I/O Ports

        2 x USB 3.2 Gen1 ports

        1 x VGA port

        1 x Management port

        2 x 1GbE LAN ports

      • Switch/LED

        Front:

        1 x Power Button/LED

        1 x Location Button/LED

        1 x Message LED

        LAN 1-2 LED

        Rear:

        1 x Port80 LED (Q-Code)

        1 x Power Button/LED

        1 x Location Button/LED

        1 x Message LED

      • Management Solution

        ASUS Control Center

        ASUS ASMB11-iKVM (on-board)

      • Regulatory Compliance

        BSMI, CB, CE, RCM, FCC(Class A)

      • Dimensions

        842.5mm x 449mm x 43.85mm (1U)

        33.17″ x 17.68″ x 1.73″

      • Form Factor

        1U

      • Weight

        (approximate)

        Net Weight: 14.16 kg

        Gross Weight: 19.16 kg

      • Power Supply

        1+1 Redundant 1600W 80 PLUS Titanium

        Power Supply

        1+1 Redundant 1600W/1200W 80 PLUS Platinum

        Power Supply

      • Environment

        Operating temperature: 10°C – 35°C

        Non operating temperature: -40°C – 70°C

        Non operating humidity: 20% – 90% (Non condensing)Note

        Operating Temperature based on configurations

      • Optional Items

        Rail Kit:

        Tool-less Friction Rail Kit

        1.2m Half Extension Ball bearing Type Rail Kit

        1m Half Extension Ball bearing Type Rail Kit

        1U Height Full Extension Ball bearing Type Rail Kit

        *Please consult sales if  cable arm needed.

        1U Front Bezel

      • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
      • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
      • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
      • PCB color and bundled software versions are subject to change without notice.
      • Brand and product names mentioned are trademarks of their respective companies.
      • The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
      • The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.



Additional information

Weight 45 lbs
Dimensions 33 × 18 × 44 in
Server Brand Name

Asus
Hard Drive Type Supported

SAS Drives, SATA Drives
