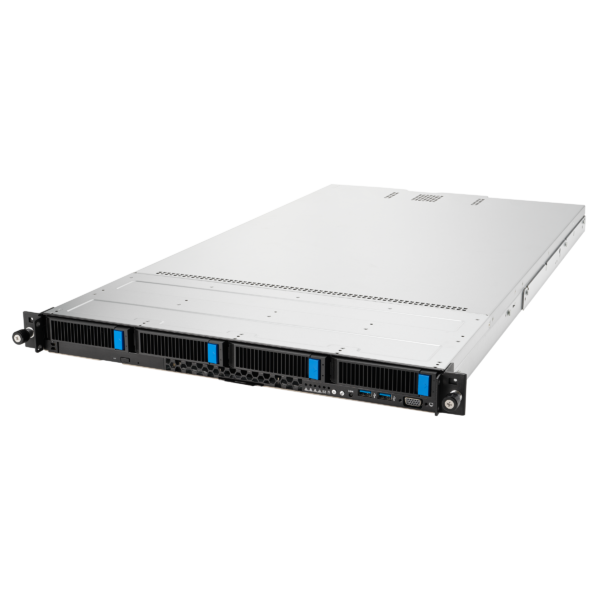

Asus RS700-E11-RS4U 1U 4 Bay Dual-Socket Powered by Intel Xeon Scalable 5th CPU System

Description

Processor / System Bus Intel®Xeon® Processor Scalable Family
Generation 4th/5th

Core Logic Intel® C741 Chipset
Memory Total slot: 32 (8-channel per CPU, 16 DIMM per CPU)
Capacity: Maximum up to 4TB
Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size: 64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
Expansion Slots Up to 3+1 PCIe slot
1 x OCP 3.0 or PCIe G5
x16 FHFL
1 x PCIe G5 x16 FHFL
1 x PCIe G5 x8. LP (Internal)
1 x PCIe G5 x16, LP
Storage 4 x 3.5″ hot-swap bay
4 x NVMe/SATA/SAS*
(HBA//RAID card is required to support SAS hard drives)
Drive Bays 4 x 3.5″ hot-swap bay
2 x M.2 slot
System Fan 9
Networking 4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port
Graphic Aspeed AST2600 64MB
Front I/O Ports 2 x USB 3.2 Gen1 ports
Rear I/O Ports 2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions 842.5mm x 439.5mm x 44mm
Form Factor 1U
Weight 22.56kg
Power Supply 1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply
CPU Heatsink/ Cooler Standard/ EVAC Heatsink
