Tyan Thunder SX TS65-B7126 2U2S Warm Storage Server, 10 SATA + 4 NVMe U.2/SATA
$2,941.00
- Description
- Additional information
Description
| System | Form Factor | 2U Rackmount | |
| Chassis Model | TS65 | ||
| Dimension (D x W x H) | 25.59″ x 17.26″ x 3.45″ (650 x 438.5 x 87.6mm) | ||
| Motherboard Name | S7126GM2NRE | ||
| Motherboard Notification | # The motherboard not sold separately | ||
| Gross Weight | 25.5 kg (56.22 lbs) | ||
| Net weight | 18 kg (39.68 lbs) | ||

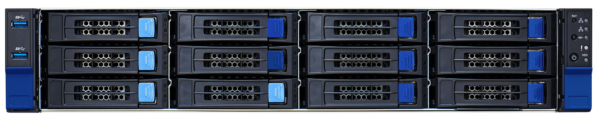

| Front Panel | Buttons | (1) UID / (1) PWR w/ LED / (1) RST | |
| LEDs | (1) UID / (2) LAN / (1) System Event | ||
| I/O Ports | (2) USB 3.0ports | ||
| External Drive Bay | Q’ty / Type | (2) 2.5″ Hot-Swap HDD/SSDs (@ rear) / (12) 3.5″ Hot-Swap SAS/SATA HDDs w/ (4) NVMe | |
| Front Drive Bay Interface | (10) SATA 6Gb/s / SAS 12Gb/s / (16) NVMe U.2 | ||
| Front HDD Backplane Support | (12) SATA 6Gb/s with (4) NVMe ports | ||
| System Cooling Configuration | FAN | (3) 6cm fans | |
| Power Supply | Type | CRPS | |
| Input Range | AC 100-127V/13A / AC 200-240V/9.5A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 1,000 Watts (100-127Vac input) / 2,000 Watts (200-240Vac input) | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q’ty / Socket Type | (2) LGA4189 | |
| Supported CPU Series | 3th Gen. Intel Xeon Scalable Processors | ||
| Thermal Design Power Wattage | Max up to 205W (TDP) | ||
| System Bus | |||
| Chipset | PCH | Intel C621A | |
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots | |
| DIMM Type / Speed | DDR4 RDIMM/LRDIMM 3200 | ||
| Capacity | Up to 2,048GB RDIMM/ 4,096GB LRDIMM/ 4,096GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 8 Channels per CPU / 2 DIMM slots per Channel | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCIe |
|
|
| Others | (1) PCIe Gen.3 x16 OCP v2.0 mezzanine slot | ||
| LAN | Q’ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| PHY | Realtek RTL8211FD-CG | ||
| Storage SATA | Connector | (14) SATA | |
| Controller | Intel C621A | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| Storage NVMe | Connector (M.2) | (1) 22110/2280/2242 (by PCIe Gen.3 interface) | |
| Notification | Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920×1200 | ||
| Chipset | Aspeed AST2600 | ||
| I/O Ports | (1) USB3.2 Gen.1 port (@ rear) / (2) USB3.2 Gen.1 ports (@ front) | ||
| COM | RJ45 | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) 10 GbE ports + (1) dedicated GbE for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2600 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 | |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 64MB | |
| Feature | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| VCCI | Class A | ||
| C-Tick | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | – 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity 90 | 90%, non-condensing at 35° C | ||
| Package Contains | Barebone | (1) TS75A-B7132 Barebone | |
| Manual | (1) Quick Installation Guide | ||
| RoHS | RoHS 6/6 Compliant | Yes |
Additional information
| Weight | 50 lbs |
|---|---|
| Dimensions | 30 × 18 × 5 in |
| Server Brand Name | Tyan |
| Server Form Factor | 2U Rackmount Server |
| Processor Supported | Intel Xeon Scalable 3rd Gen Processors |
| Drive bays Supported | 12 x 3.5" Drive Bays |
| GPUs/Video Cards Supported | 2 |
| Hard Drive Type Supported | M.2, SAS, SATA, U.2 NVMe SSD |
| PCIe Slot Counts | 6 x PCIe Slot |
