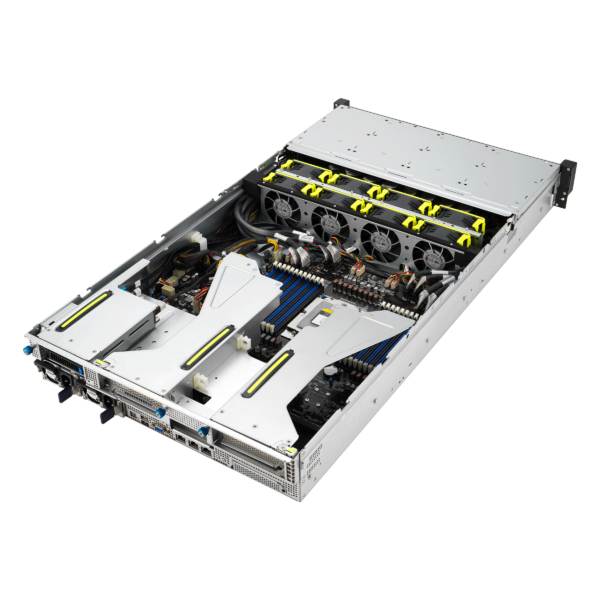

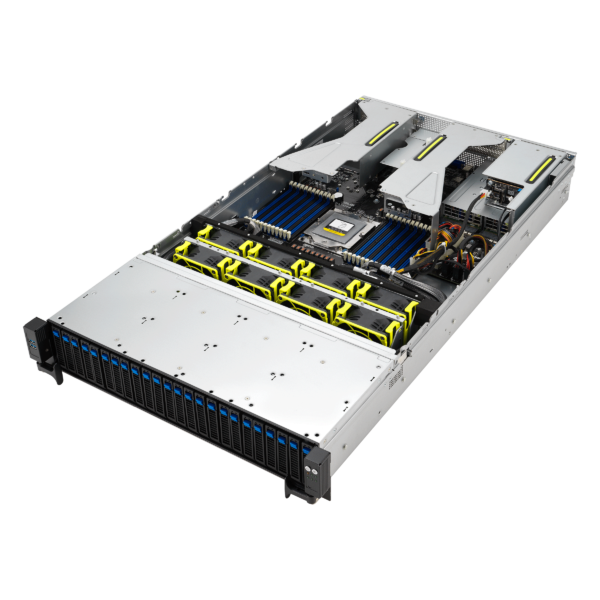

Asus RS520A-E12-RS24U 2U 24 x 2.5″ Bays Single-socket server powered by AMD EPYC 9004 Dual-processors
$3,095.00
- Powerful performance: Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- Scale-up storage and expansion design: Up to 24 all-flash NVMe drives on the front panel and nine PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to three dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx
- Description
- Additional information
Description
-
-
-
-
Processor / System Bus
1 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series Processors (up to 400W)
-
Memory
24 x DIMM slots
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Maximum 6144GB
*2DPC support depends on AMD schedule
* Refer to support page for more information
-
Expansion Slots
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP Mezz. 3.0 Slot ( (PCIe Gen5 x16)
-
Storage
Storage Controller :
CPU Integrated
Optional kits Controller :
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
-
Drive Bays
Front bays:
24 x 2.5” hot-swap drive bays
Support up to 24 NVMe or 16x NVMe + 8 SAS/SATARear bays:
2 x 2.5” SATA hot-swap drive bays
*SAS support only from optional SAS HBA/RAID
card
2 x M.2 connectors
-
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
-
Graphic
Up to 4 single-slot or 2 double-slot GPU cards
*24 NVMe can‘t support GPU
-
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
-
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
-
Switch/LED
Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
-
OS Support
Please find the latest OS support from https://servers.asus.com/support/os -
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
-
Regulatory Compliance
CB, CE, RCM, FCC(Class A) -
Dimensions
840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47
-
Form Factor
2U -
Weight
(approximate)
Net Weight: 19.14 kg
Gross Weight: 26.63 kg
-
Power Supply
1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1600W/1200W 80 PLUS Platinum
Power Supply
-
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)Note
Operating Temperature based on configurations
-
Optional Items
Rail Kit:
Tool-less Friction Rail Kit
1.5U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
2U Front Bezel
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
- * Optional means “built for order”.
-
-
-
Additional information
Server Brand Name | Asus |
---|---|
Server Form Factor | 2U Rackmount Server |
GPUs/Video Cards Supported | 2 |
Hard Drive Type Supported | SAS Drives, SATA Drives, U.2 NVMe SSD |
Processor Supported | Intel Xeon Scalable 4th Gen Processors |
