| System |
Form Factor |

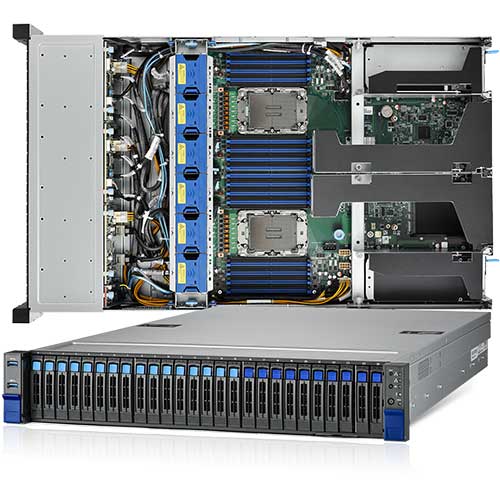

2U Rackmount |
| |
Chassis Model |
TS75A |
| |
Dimension (D x W x H) |
29.56″ x 17.26″ x 3.43″ (750.8 x 438.4 x 87mm) |
| |
Motherboard Name |
S7132GM2NRE-2T # |
| |
Motherboard Notification |
# The motherboard not sold separately |
| |
Gross Weight |
33.1 kg (73 lbs) |
| |
Net weight |
20.3 kg (44.8 lbs) |
| Front Panel |
Buttons |
(1) UID / (1) PWR w/ LED / (1) RST |
| |
LEDs |
(1) UID / (2) LAN / (1) System Event |
| |
I/O Ports |
(2) USB 3.2 Gen.1 ports |
| External Drive Bay |
Q’ty / Type |
(10) 2.5″ Hot-Swap SAS/SATA HDDs / (16) NVMe |
| |
Front Drive Bay Interface |
(10) SATA 6Gb/s / SAS 12Gb/s / (16) NVMe U.2 |
| |
Front HDD Backplane Support |
SAS 12Gb/s /SATA 6Gb/s /NVMe |
| System Cooling Configuration |
FAN |
(6) 6cm fans |
| Power Supply |
Type |
CRPS |
| |
Input Range |
AC 100-127V/13A / AC 200-240V/9.5A |
| |
Frequency |
50-60 Hz |
| |
Output Watts |
1,000 Watts (100-127Vac input) / 2,000 Watts (200-240Vac input) |
| |
Efficiency |
80 plus Platinum |
| |
Redundancy |
3+1 |
| Processor |
Q’ty / Socket Type |
(2) LGA4677 |
| |
Supported CPU Series |
4th Gen. Intel Xeon Scalable Processors |
| |
Thermal Design Power Wattage |
Max up to 350W (TDP) |
| |
System Bus |
|
| Chipset |
PCH |
Intel C741 |
| |
|
|
|
|
|
| Memory |
Supported DIMM Qty |
(16)+(16) DIMM slots |
| |
DIMM Type / Speed |
RDIMM DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) / 3DS RDIMM DDR5 4400MHz (2DPC) |
| |
Capacity |
| Up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400 memory |
|
| |
Memory channel |
8 Channels per CPU / 2 DIMM slots per Channel |
| |
Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slots |
| |
Pre-installed TYAN Riser Card (PCIe Gen.5) |
(1) M7132T75-L20-2F riser card for (1) FH/10.5″L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots / (1) M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1F riser card for (1) FH/10.5″L/DW PCIe 5.0 x16 slot |
| |
Others |
(1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot |
|
|
|
| LAN |
Q’ty / Port |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
| |
PHY |
Realtek RTL8211E |
| Storage SATA |
Connector |
(3) SFF-8643 for (12) front SATA drives |
| |
Controller |
Intel C741 |
| |
Speed |
6Gb/s |
| |
RAID |
RAID 0/1/10/5 (Intel Raste) |
| Storage NVMe |
Connector (M.2) |
(1) 2280 (by PCIe 3.0 x4) M.2 slot on MB / (1) 2280 (by PCIe 4.0 x1) M.2 slot on PCIe I/O board |
| |
Connector (U.2) |
(8) SFF-TA-1016 (MCIO 8x) for (16) front NVMe |
|
|
|
| Graphic |
Connector type |
D-Sub 15-pin |
| |
Resolution |
Up to 1920×1200 |
| |
Chipset |
Aspeed AST2600 |
| I/O Ports |
|
(1) USB3.2 Gen.1 port (@ rear) / (2) USB3.2 Gen.1 ports (@ front) |
| |
COM |
RJ45 |
| |
VGA |
(1) D-Sub 15-pin port |
| |
RJ-45 |
(2) 10 GbE ports + (1) dedicated GbE for IPMI |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| |
Temperature |
Monitors temperature for CPU & memory & system environment |
| |
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| |
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| |
Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| |
AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| |
AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 64MB |
| |
Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Regulation |
FCC (SDoC) |
Class A |
| |
CE (DoC) |
Class A |
| |
CB/LVD |
Yes |
| |
VCCI |
Class A |
| |
C-Tick |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| |
Non-operating Temp. |
– 40° C ~ 70° C (-40° F ~ 158° F) |
| |
In/Non-operating Humidity 90 |
90%, non-condensing at 35° C |
| |
|
|
| Package Contains |
Barebone |
(1) TS75A-B7132 Barebone |
| |
Manual |
(1) Quick Installation Guide |
| RoHS |
RoHS 6/6 Compliant |
Yes |
